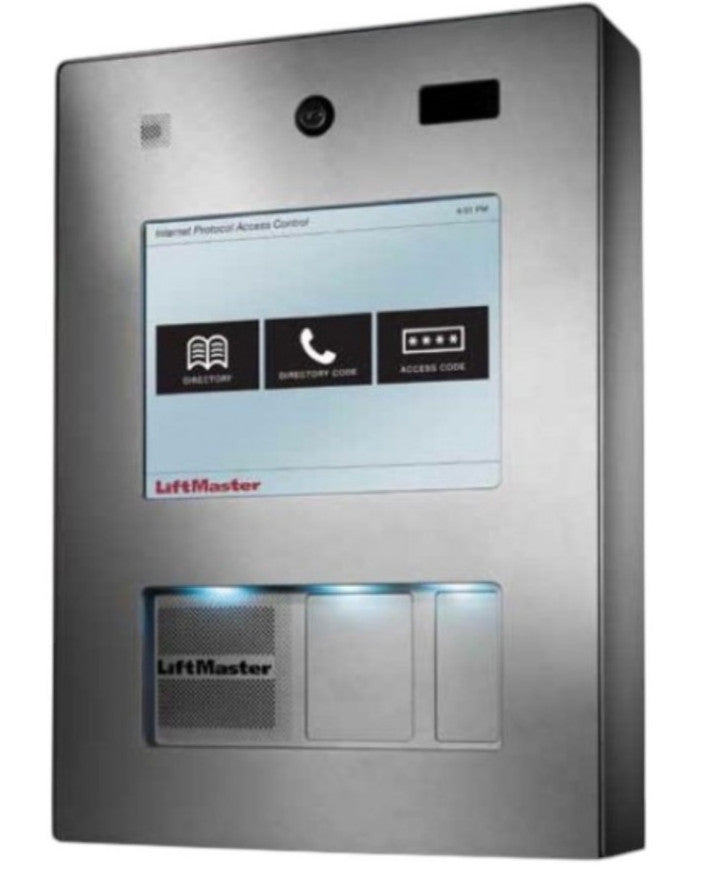

Liftmaster IPAC Internet Protocol Access Control Telephone Entry Ssytem

Streamline your workload and reduce directory maintenance downtime. • Make updates 24/7 through an IP address (no software to install), so you never have to take IPAC offline. • Manage resident info from any browser on your LAN, so you do not physically visit the unit. • Eliminate long-distance fees and replace old analog phone lines with VoIP technology. • Never run out of system memory with 50,000-resident capacity. Give your community’s image an upgrade for years to come. • Aircraft aluminum alloy front panel is rust-, scratch- and dent-resistant. • Weathertight construction (IP65 rated). • Withstands −20°F to 130°F, providing year-round protection. • 10" color touchscreen is easy to use by your residents and guests. • Full on-screen keyboard lets guests quickly find a resident’s name without scrolling. • Reflective coating and auto dimming allow easy readability in any light. • Durable protective screen withstands constant use.

SPECIFICATIONS HARDWARE SPECIFICATIONS

DIMENSIONS - Height: 17.9" - Width: 12.73" - Depth: 3.74"

MATERIAL Front Panel: T6061 Aircraft Aluminum Alloy Enclosure: 13-Gauge Cold-Rolled Steel

FINISH Front Panel: Silver Hard Anodized Coat Enclosure: Light Gray Powder Coat

ENCLOSURE COMPONENTS Microphone Speaker

LED Lighted Recessed Faceplate Display - 10" Color Resistive Touchscreen - Dusk to Dawn Light Sensor - Heavy-Duty Piano Hinge - HID ProxPoint® Plus Mini Card Reader Provision (optional) - Touch Keypad Provision (optional)

SUPPLY VOLTAGE 16VDC, 2.5 Amps (Transformer Input 120VAC, 60Hz, 1.0 Amps)

OPERATING CURRENT 1.17 Amps (without accessories) Surge Suppression—EFT: 2 KV Power Line, ESD: 15Kb Hbm/8KV Direct/200V Mm (compliance with UL) Unit Operating Temperature Range: –20°F to 130°F

ENCLOSURE Outdoor IP65 Rated (2) Wiegand Inputs—26-, 30- and 34-bit ODD and 34-bit EVEN 12V, 250mA Power Output (per port) (4) Relay Outputs—Single Pole Double Throw, Maximum Voltage of 30VDC/AC and Output Current of 3 Amps

ACCESS CONTROL SPECIFICATIONS 24/7 Real-Time Data Access Management and Monitoring—Standard Up to 50,000 Total Credentials—Standard 50,000 Transaction Event Buffer Non-Volatile—Standard Up to 50,000 Phone Numbers Email and Text Capability (selectable) 16 Group/Security Levels, 32 Holiday Schedules, 32 Time Schedules Device Status Alerts

REQUIREMENTS Hard-Wired High-Speed Internet Connection (10/100 Mbps) - Up to 325 feet without Additional Networking Hardware Active SIP (Session Initiation Protocol) Service

INCLUDED ACCESSORY SPECIFICATIONS Passport Receiver (PPWR) - LiftMaster® Security+ 2.0™ Technology - Supports Standard 26-, 30-, 31-, 34- and 50-bit Wiegand Protocol - 12,000 Remote Capacity

OPTIONAL ACCESSORY SPECIFICATIONS Paintable Faceplate and Shroud (IPACTRK) - Material: Lexall Gray Prime Plastic - 14-Gauge Black Powder-Coated Steel Retrofit Trim Ring (IPACRTR) - Fits: Infinity L and Icon 26 Flush Mount Openings - Material: 16-Gauge Black Powder-Coated Steel HID ProxPoint® Plus Mini (SNARHIDPOINT) - Special Provisioning for LiftMaster IPAC Keypad (IPACKEY) - Material: T6061 Aircraft Aluminum Alloy - Finish: Hard Anodized - Interface: Piezo Touch Keys Postal Lock Box (IPACPLB) - Height: 7.65" - Width: 5.65" - Depth: 3" - Panel Material: T6061 Aircraft Aluminum Alloy - Panel Finish: Post-Office Blue Hard Anodized Enclosure - Enclosure Material: 14-Gauge Light Gray Powder-Coated Steel Internet Protocol Door Controller (IPACIPDC) - Intended for use in indoor environments only  - Height: 4.5" - Width: 3" - Depth: 1.25" - (2) Wiegand Inputs - (2) Relay Outputs Camera Kit (IPACCAMK) - Camera and Transformer Capabilities and Features IPAC Panel System Capacities Residents 50,000 Stored Events Buffer 50,000 Wiegand Inputs Up to 2 Access Points—Gates or Doors 2 Programmable/2 Auxiliary Panels per System 1 Groups per System 16 Holidays per System 32 Schedules per System 32 Cards per User 1 System Features Anti-Passback (Timed or True) Zones 2 Credential Types Wiegand and PIN Card and PIN Access (2-Factor Credentials) Yes Group-Enabled Schedules Yes Schedule Exceptions No.
